Application Standard:IEC 60502-1, IEC 60331, IEC 60754, IEC 61034
Overal:

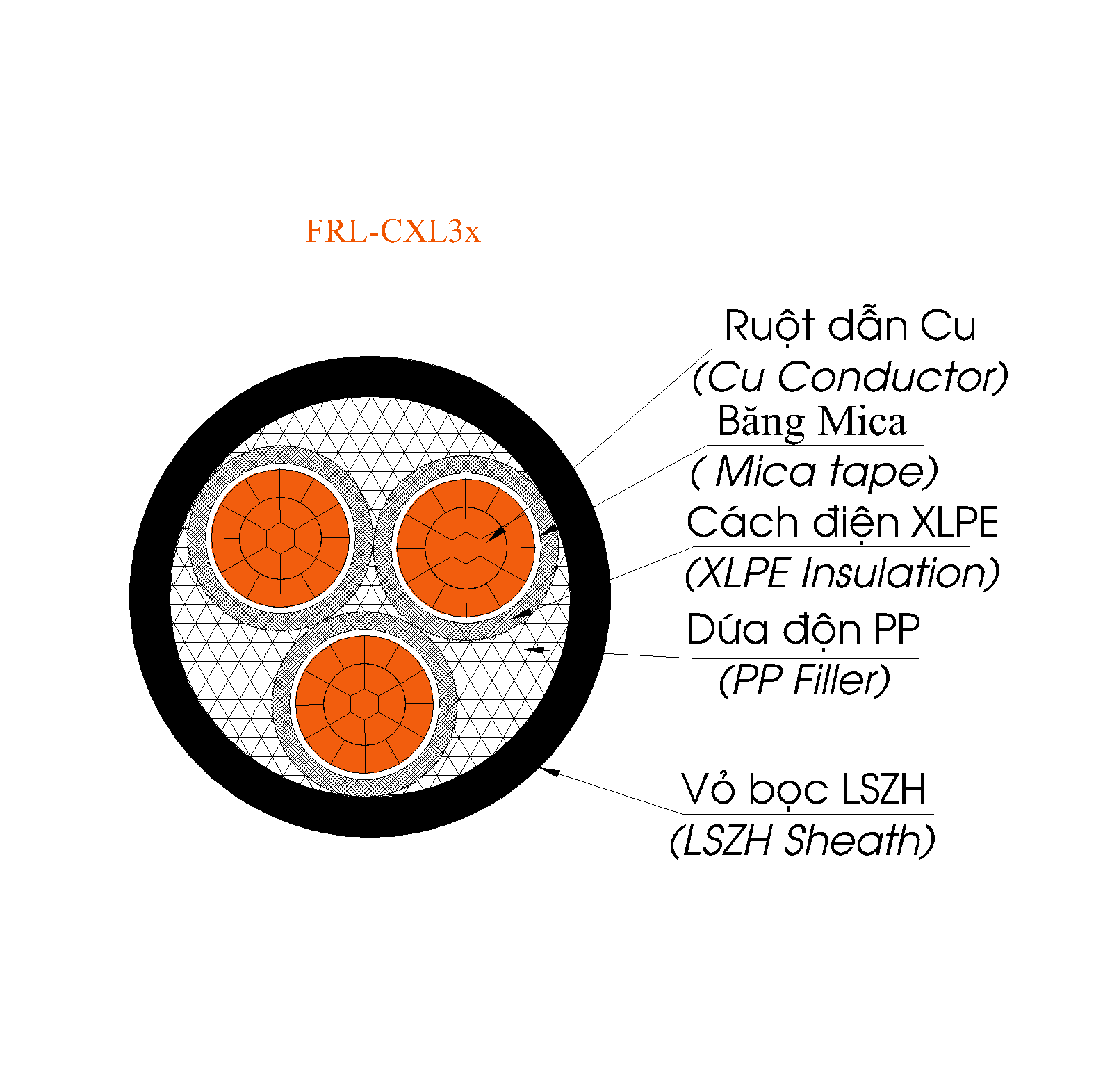

+ Specification: Cu/Mica/XLPE/LSZH
+ Conductor: Cu 99,99%.
+ No of wires: 2,3,4,5
+ Structure:  including stranded round wires/ Circular Compacted class 2
+ Nominal: from 1.5mm2 to 800 mm2
+ Nominal voltage: 0,6/1 kV
+ Allowance tempurature at Max: 90 ^oC
+ Allowance maximum tempurature at short term of no more than 5 second: 250 ^oC
+ Can be working fine at 750 ^oC in 90 minutes"
+ Apperance: Round
+ Packing standard: Using drums or rolls following by customer's requests."
Apply for: The conductor is protected by special Mica which build up the wall to prevent the fire, the cover is covered by the low burn plastic without Halogen will make the cable hard to get burn, lower the level of fire spread, and do not produce poison smoke comparing to normal cables. Therefor, it is suitable for transfering electric in populated areas with high level of fire.
Note: behinds the specification above, CADI-SUN would make many others request from customers.
